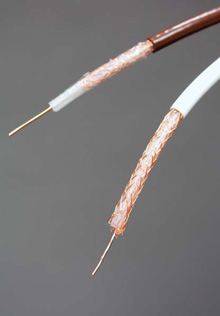

Coaxial Cable (Low Loss Air Spaced)

Coaxial Cable (Low Loss Air Spaced)

Application

Suitable for general purpose TV aerial downleads.

Construction

7/1.0mm plain solid copper conductor with an air spaced polythene insulation, 48 x 0.12mm plain copper braiding covered with a white or brown PVC sheath.

Technical Data

Characteristic Impedance: 75 Ohms.

Capacitance: 56Pf/m.

Attenuation (Per 10mts): 100MHz @0.8dB.

Relevant Standards

To BS2316 and BS EN 50117.

Drum Sizes

100mts or cut to size.

Order Code Description Overall Diameter (mm) Clip Ref
COAXBRN 75 Ohm Low Loss Coax Cable - Brown 6.9 RC7BRN
COAXWHI 75 Ohm Low Loss Coax Cable - White 6.9 RC7
To order any the products below enter the quantities required in the appropriate box or boxes. You can also use the up and down arrows to increment the quantities. If you wish to add any of the products to your favourites tick the boxes to the right. When you have selected all required products click the 'Add to Basket/Favourites' button.

Order Code Description Qty Required FAV+
COAXBRN 75 Ohm Low Loss Coax Cable - Brown
COAXWHI 75 Ohm Low Loss Coax Cable - White
